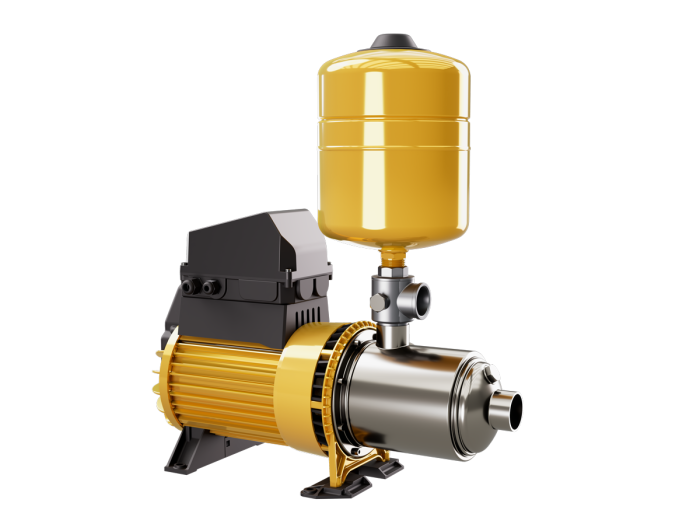

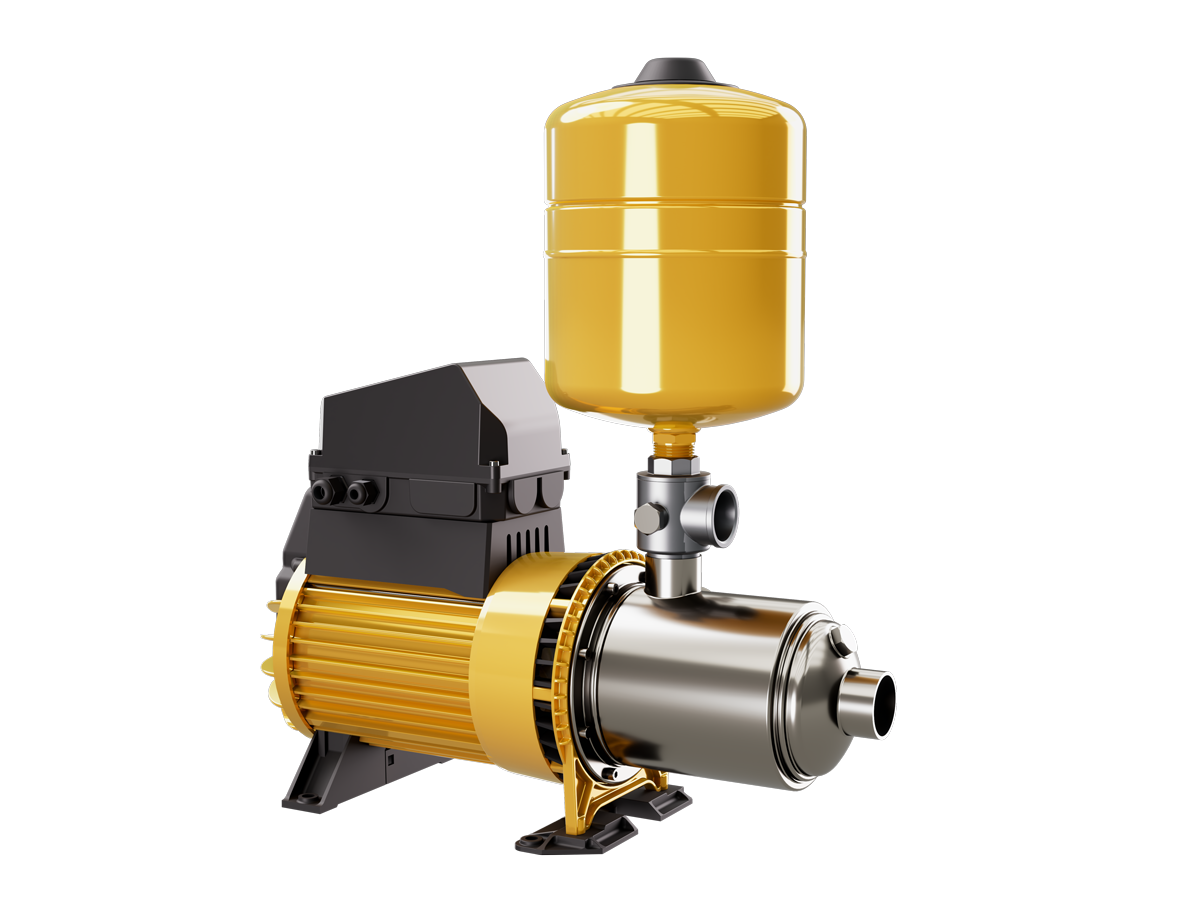

DynaDrive Constant Pressure System
Pressure. Perfected.
The DynaDrive series provides constant pressure solutions suitable for any sized household. With the ability via daisy chain to connect 2-4 pumps in parallel Dynadrive is also suitable for agriculture & light commercial applications.
As a constant pressure pump, the variable speed drive maintains water pressure at a fixed point regardless of an increase or decrease in water demand for your application.
The number of taps being used in your home doesn’t impact your water pressure or flow, with DynaDrive’s constant pressure, you can be assured of consistent, steady pressure where you need it. As taps are turned off, the drive adjusts automatically, keeping the pressure constant while saving energy.
With DynaDrive you can expect:
- Consistent pressure when another tap is turned on
- Smooth and quiet flow
- Reduction in water hammer
- Reduced operating costs
- Quiet pump operation
DynaDrive features an integrated controller that is easy to set up and use. It allows you to set your desired water pressure while also being energy efficient. By reducing the pressure on your system when it’s not needed, DynaDrive reduces the energy consumed, saving you money.
DynaDrive has been certified and tested to comply with the requirements of the AS/NZS 4020 standard. The AS/NZS 4020 standard stipulates that products in contact with drinking water do not affect the taste or appearance of the water, do not support the growth of micro-organisms and do not release cytotoxic or mutagenic compounds or metals into the water.
The Davey DynaDrive range features Daveys strong & dependable Horizontal multistage centrifugal pumps paired with a Variable Speed Drive controller to deliver constant pressure suitable for every household with effortless efficiency.
With all hydraulic parts in stainless steel the Dynadrive range is suitable for high water temperatures, is corrosion & wear resistant & comes in a compact design that is easy to install.
Models in the range include:
- DD60-10 - max. flow up to 85 lpm

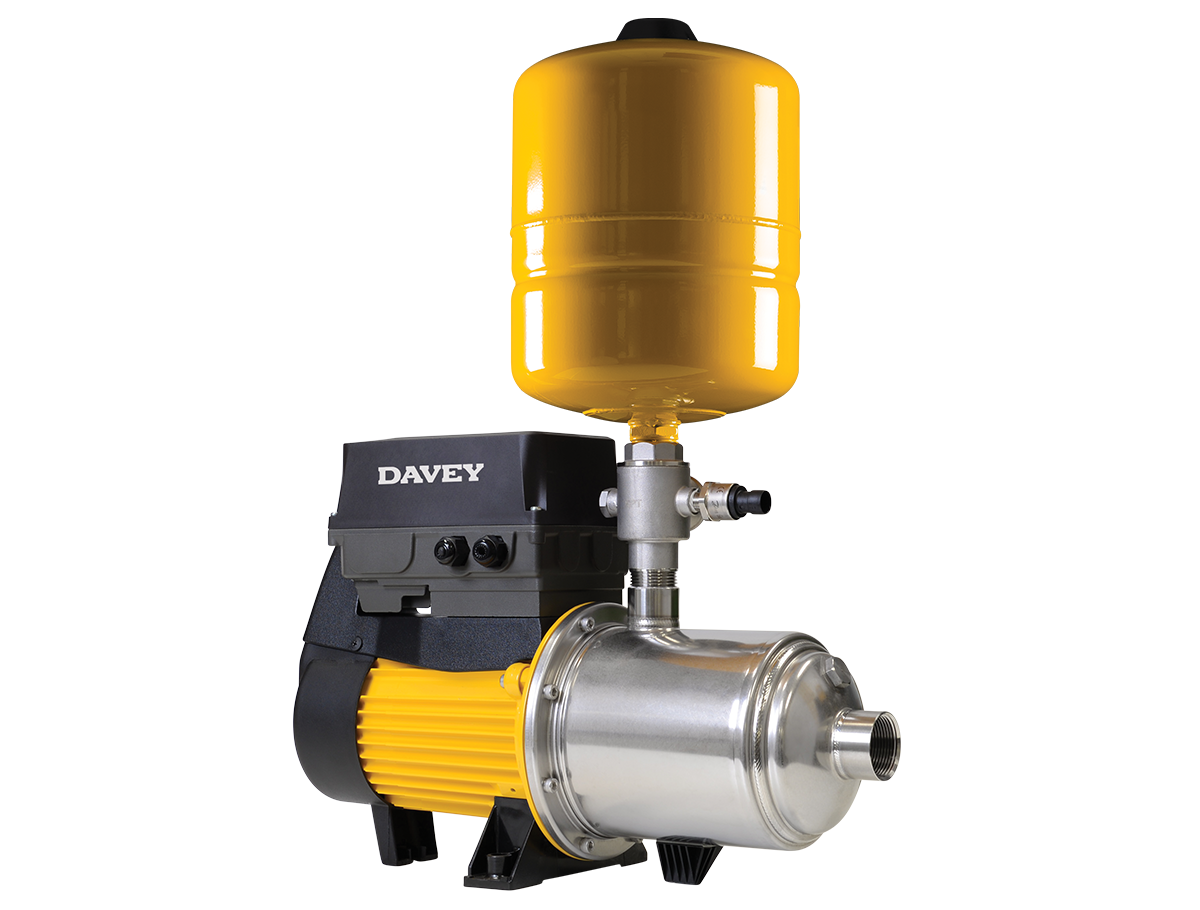

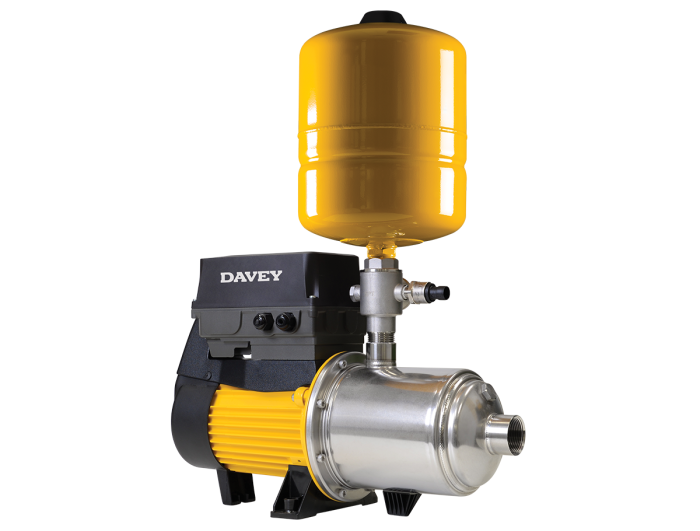

- DD90-11 - max. flow up to 125 lpm
- DD160-19 – max. flow up to 245 lpm
- Stainless-steel impellers with high efficiency impeller profile and thick self-centring impeller neck rings for:
- High efficiency
- Reduced power consumption
- Low noise output
- Air purging valve and stage porting:
- Easier priming
- Less susceptible to air leaks
- Improved dependability
- Impellers mounted directly on extended motor shaft:
- Maximise performance per stage
- High efficiency
- Long motor and pump life
- Increased wear resistance
- Pump casing assembly attached to motor bracket at 8 points with o-ring seal:
- Complete stainless casing
- Better sealing
- Longer service life
- Davey built, totally enclosed fan cooled (TEFC) electric motor:
- Sealed and greased for life motor bearings
- Oversized drive bearing
- Longer life
- Easy service
- Economical and quiet running
- Controller
- Warning indication for system faults
- Adjustable pressure settings
- Constant pressure at high flow rates
- Loss of prime protection
- Capable of daisy chain applications between 2–4 pumps (dependent on model used)
- Easy service
- Economical & quiet running
Please refer to the documentation for all features and full technical specifications.
Warranty Period: 24 Months
For more information on product warranty or for further assistance, please contact us.
